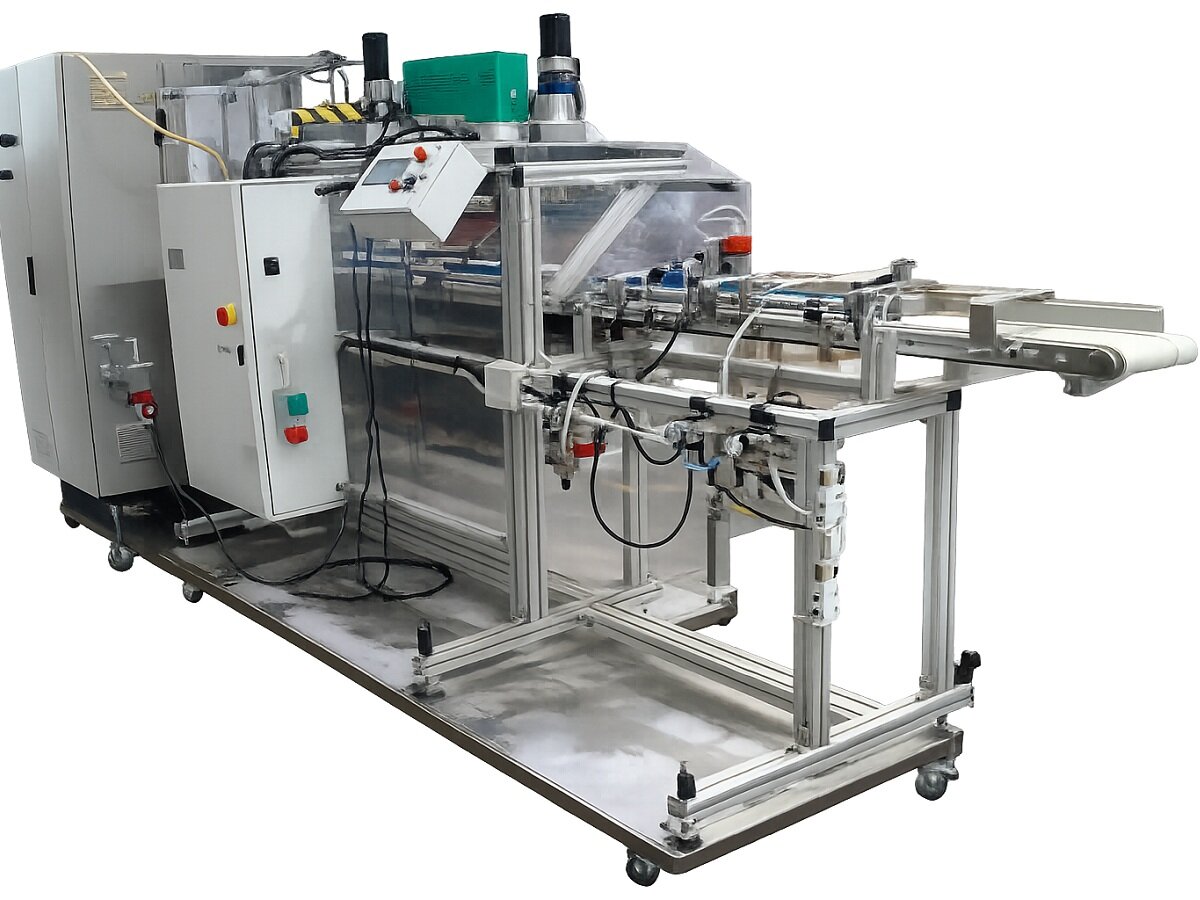

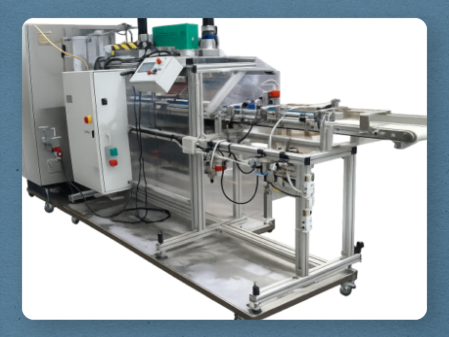

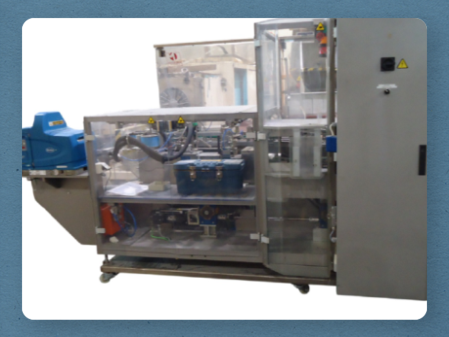

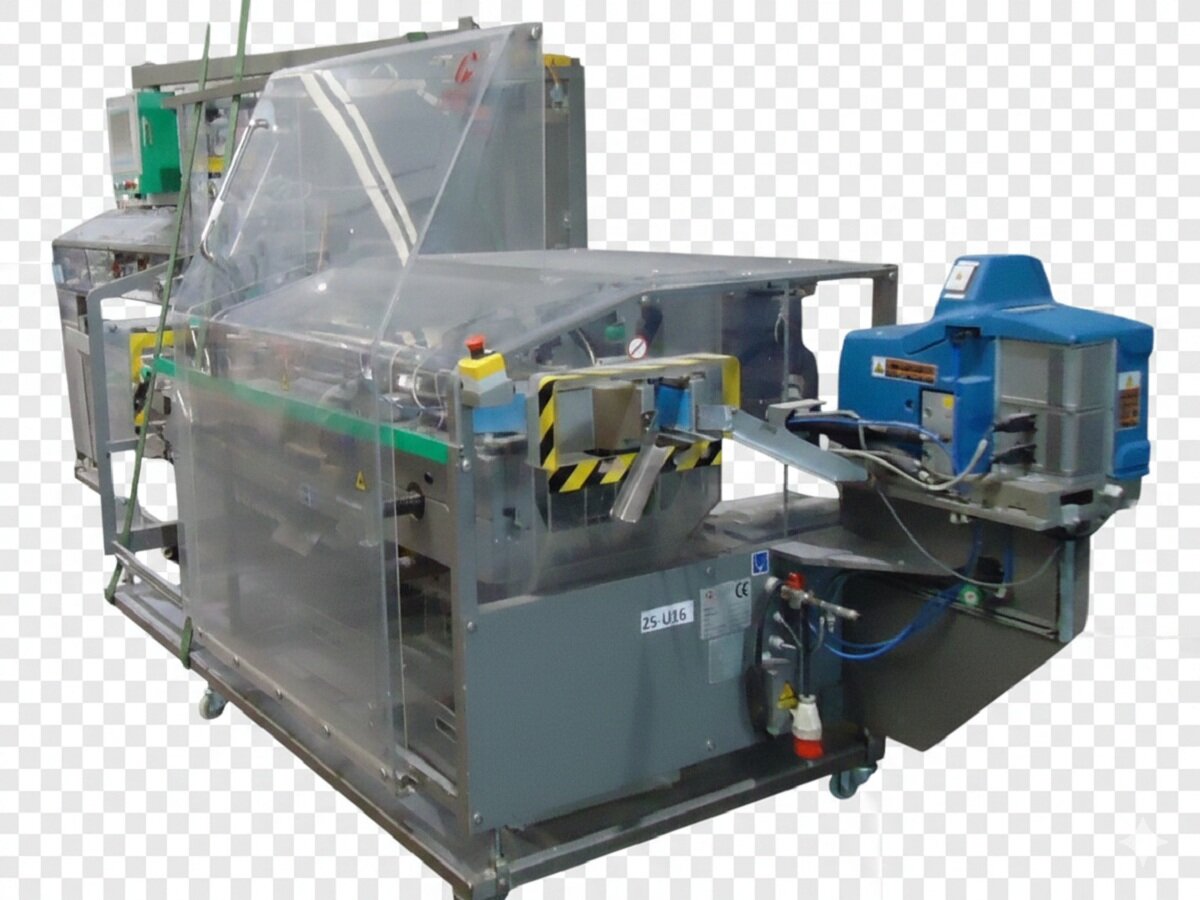

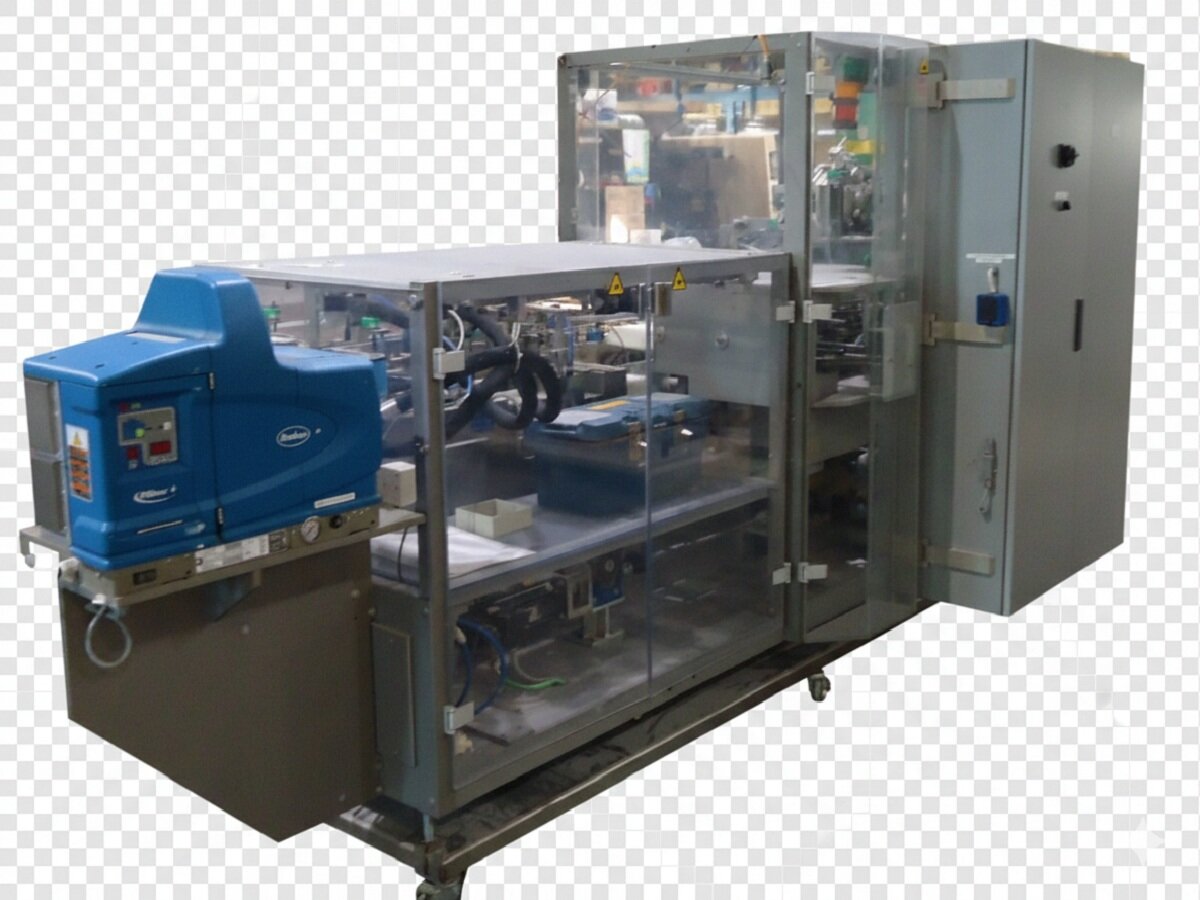

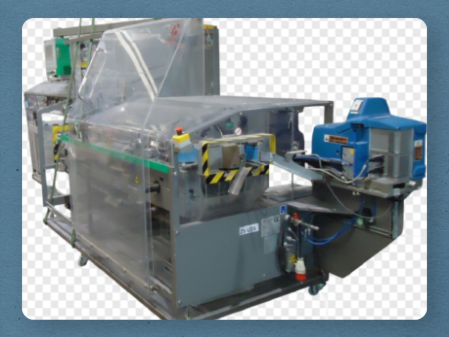

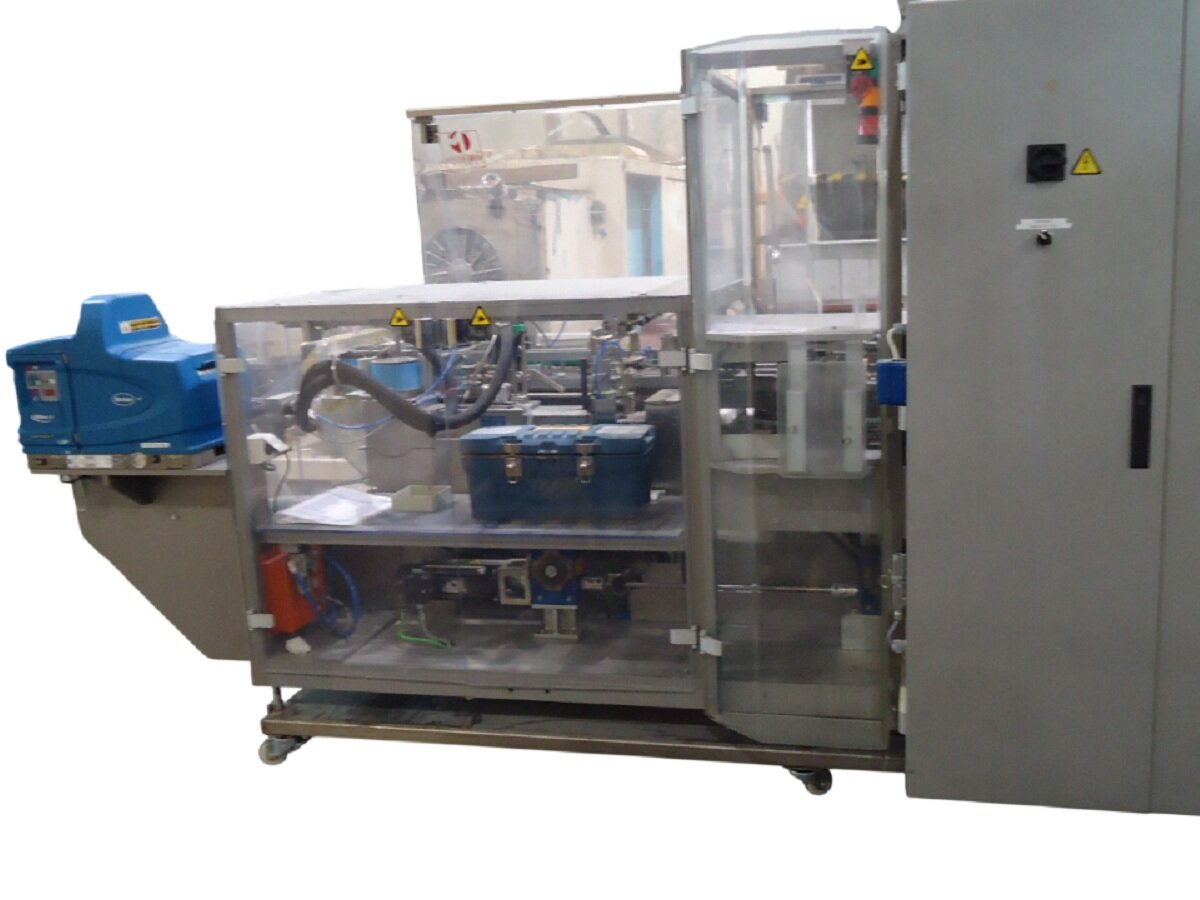

MARCHESINI MA 255 CARTONING MACHINE
The refurbished MARCHESINI MA 255 is a continuous-motion horizontal cartoning machine built with a full balcony-style structure. Its design is based on three main principles: flexibility, operator comfort, and high performance within a compact overall size. Owing to these features, it is particularly well suited for packaging cosmetic and pharmaceutical products, as well as a wide range of similar items.The carton closure of the MARCHESINI MA 255 cartoning machine is set for tuck-in (reverse tuck) flaps, both double-sided offset or equilateral, but on request we can supply an hot melt system.
Technical specifications:
- Continuous motion cartoning machines
- Automatic operating cycle with carton pick-up only in the presence of the product.
- Cross control of the presence of product-carton-leaflet.
- Main mechanisms in oil bath, to reducing maintenance and noise level
- Minimum load sensors for product-carton.
- Correct carton opening checking device.
- Mechanical pusher safety device
- Mechanical overload control unit for the machine.
- Complete safety guards with wide doors for easy access.
- Vacuum pump.
- Electronically interlocked safety covers.
- Brand New Electrical Panel
Maximum Speed:
- Up to 240 strokes per minute.
Product Sizes:
- Length: from 65 to 150 mm.
- Width: from 25 to 100 mm.
- Thickness: from 15 to 85 mm.
Optional:
- Automatic Feeder
- Customized size group
- Hot melt system
