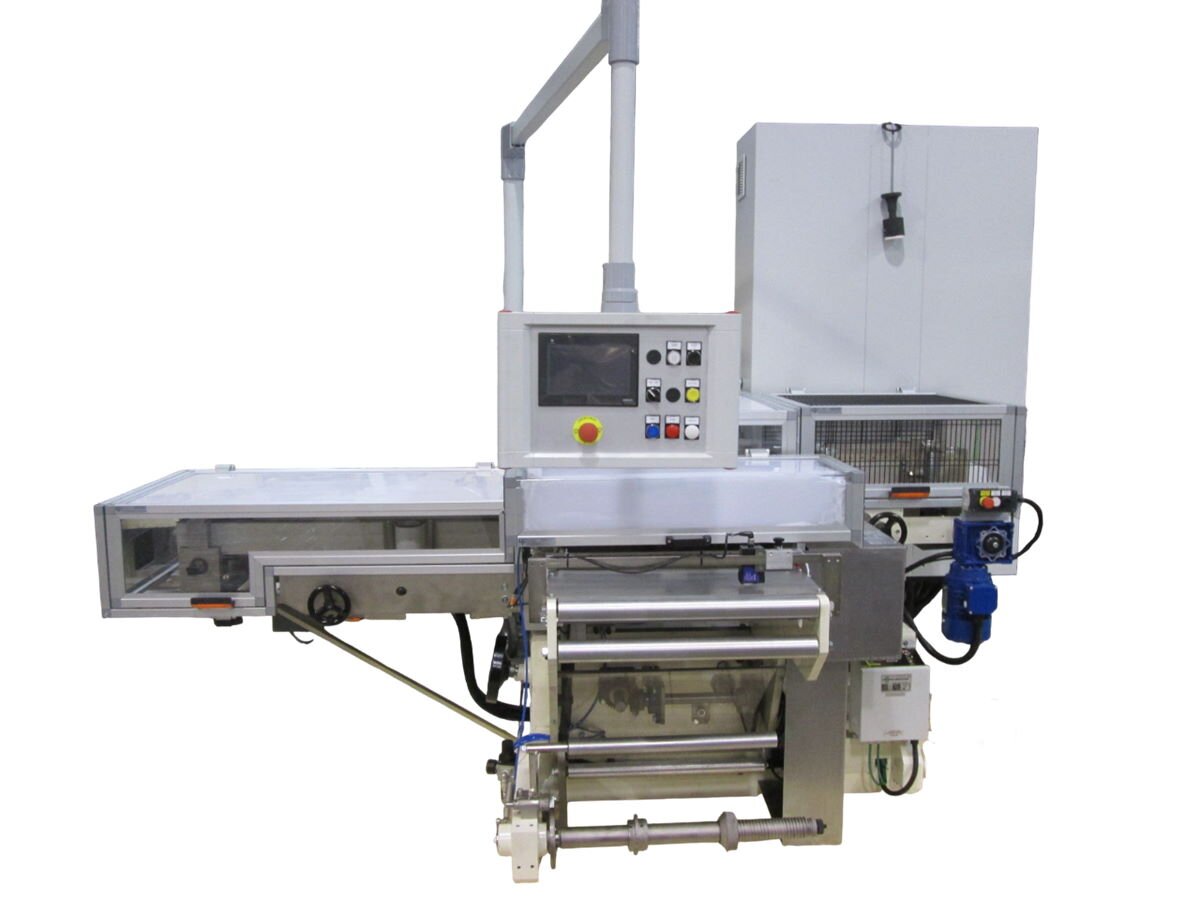

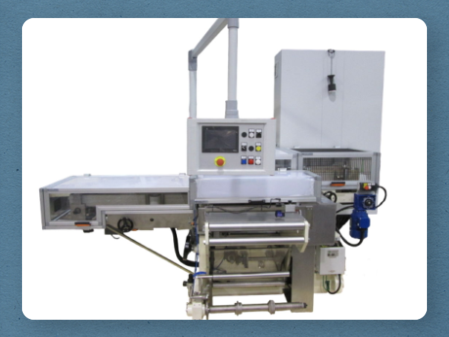

IMA BFB 3701 OVERWRAPPING MACHINE / BUNDLER
Refurbished IMA BFB 3701, automatic bundling machine developed by IMA – BFB for wrapping and bundling both regular and irregular products. It works with heat-sealable films such as cellophane and PP, ensuring accurate wrapping even on complex shapes. The machine features a sealed steel frame, PLC management, quick format changeovers. On request we can supply a range of brand new optional devices including print registration, and extra film holders, making it a versatile choice for food and personal care packaging lines.
Technical specifications:
- Infeed belt conveyor in-line with the outlet
- Elevator plate to lift up the required number of products.
- Bundle pusher
- Reel-holders at 90° compared with the product flow.
- Sealing station for the longitudinal seal
- Folding section
- Outlet movable side sealing plates / teflon belt
- Operator guards with safety interlocks
- Brand New Electrical Panel
Maximum Speed:
- Up to 150 strokes per minute (depending on machine configuration).
Product Sizes:
- Length: from 55 to 225 mm.
- Width: from 40 to 125 mm.
- Thickness: from 25 to 90 mm.
Optional:
- Infeed belt conveyor at 90° with the outlet
- Customized size group
- Print registration device for printed wrapping material
