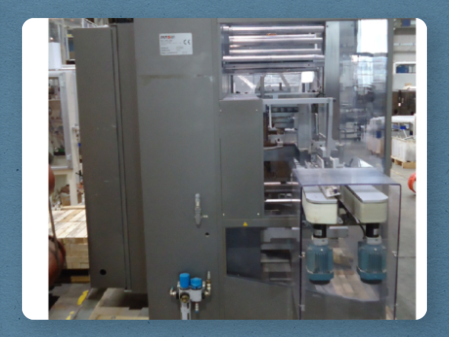

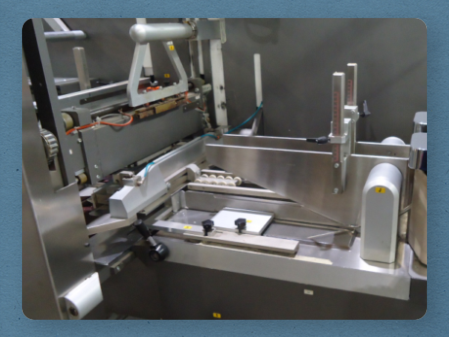

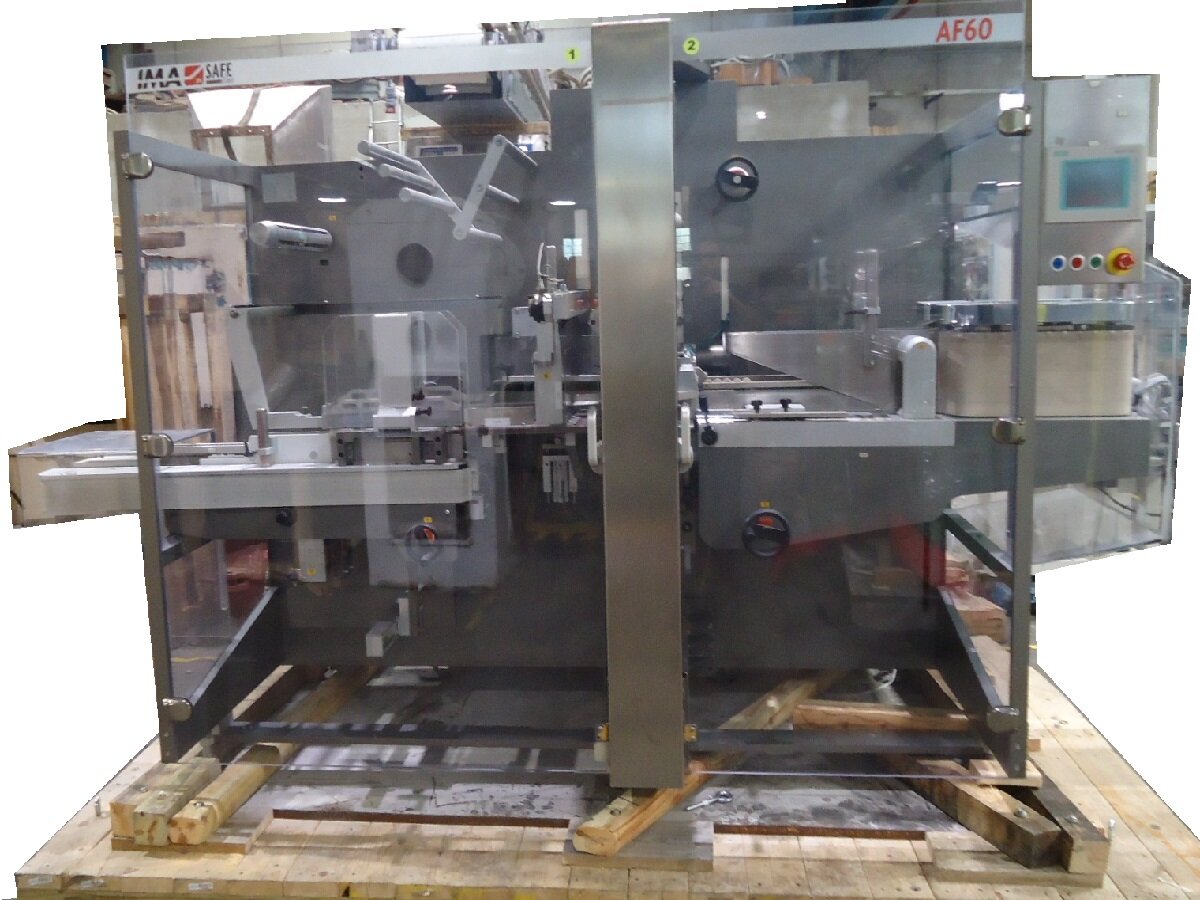

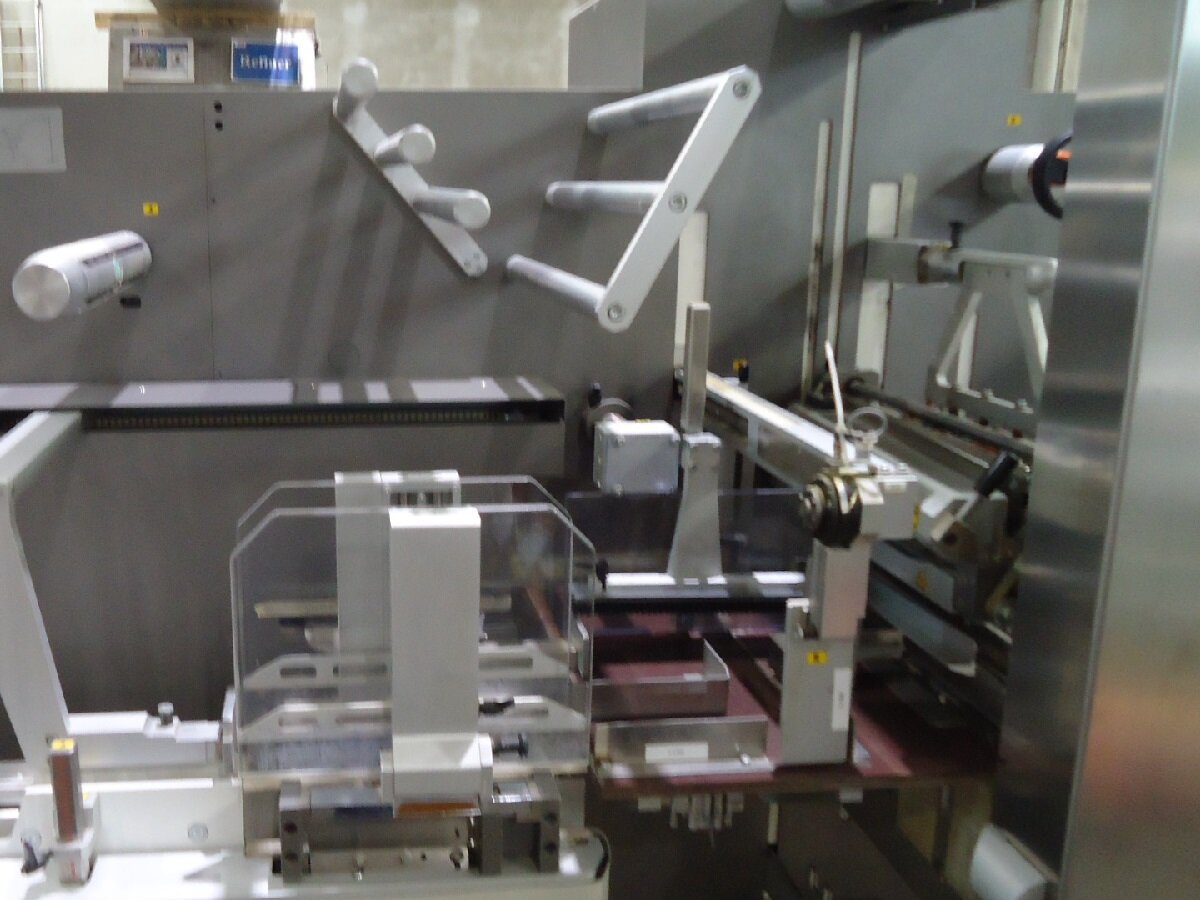

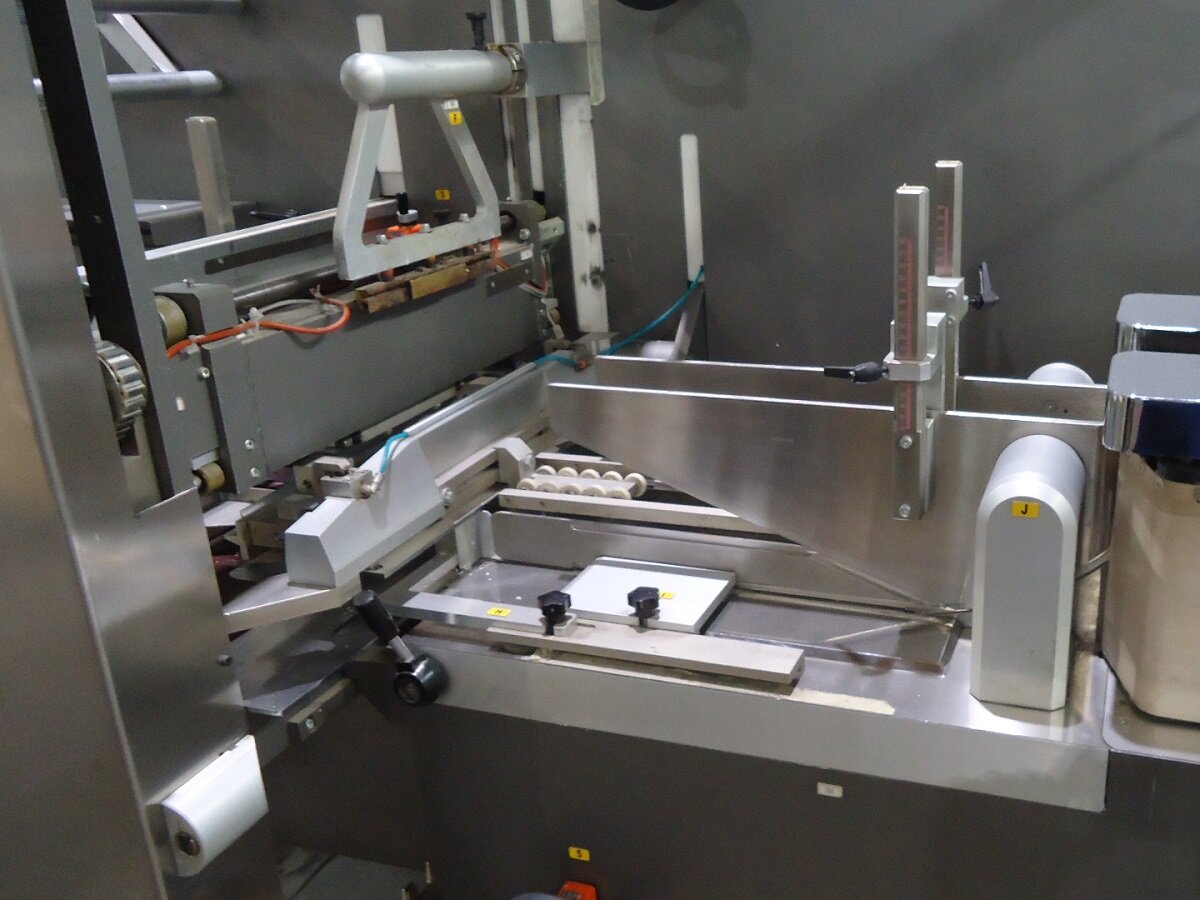

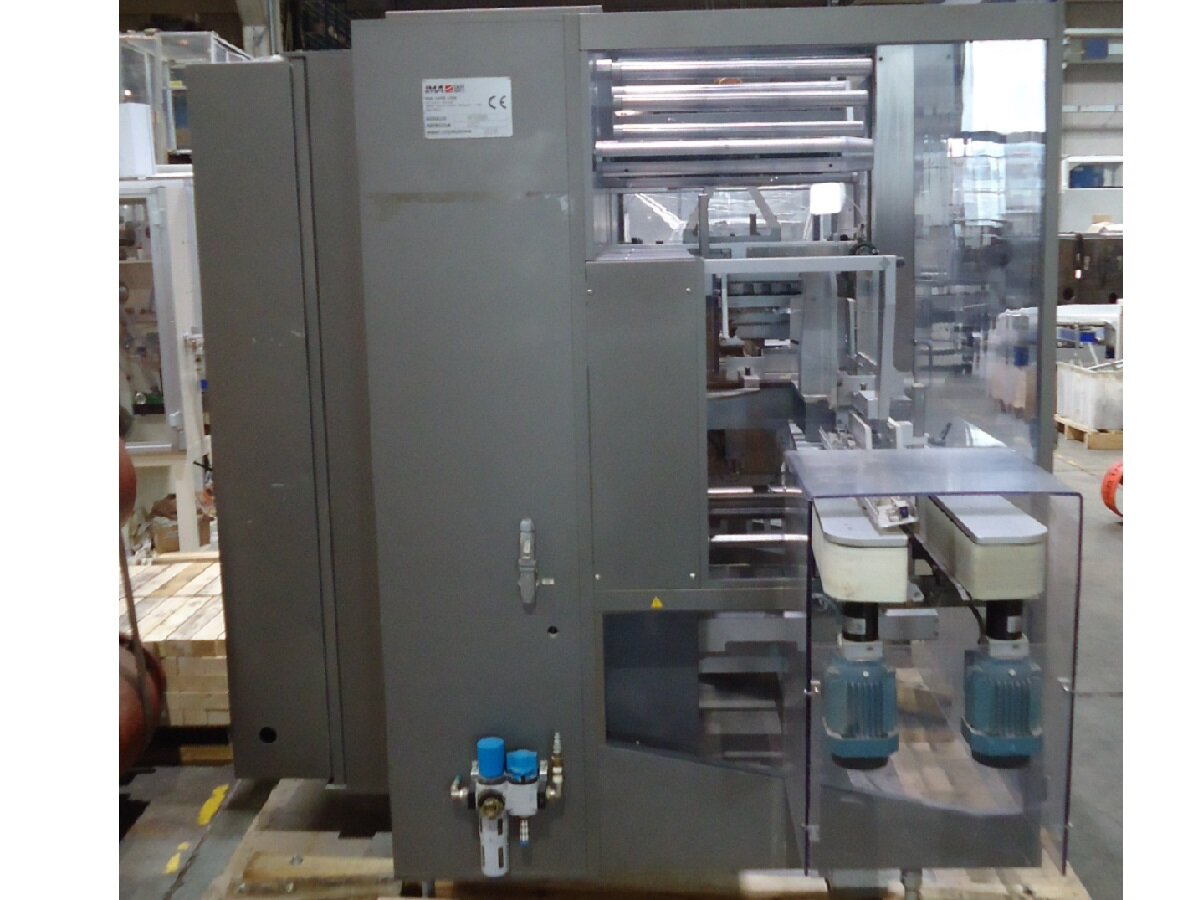

IMA BFB AF60 OVERWRAPPING MACHINE / BUNDLER
The Reconditioned IMA BFB AF60 automatic bundling machine has been developed specifically for the pharmaceutical and cosmetics industries. The operating area is designed in a balcony configuration, ensuring easy access for operation and maintenance. The IMA BFB AF60 is suitable for handling a wide range of products, using heat-sealable film such as cellophane and PP. The machine is equipped as standard with a scissor-type cutting system, film feeding handled by grippers, crosswise edge sealing, motorized bottom and side film folding mechanisms, and oscillating lateral sealing plates.
Technical specifications:
- In-line infeed belt conveyor with the outlet
- Mechanical stacking mechanism for bundles of one, or more layers
- Layer separators
- Bundle pusher
- Sealing station for the transversal seal
- Side Teflon belt conveyors for sealing with independent motion
- Operator guards with safety interlocks
- One set of change parts included
- Brand New Electrical Panel
Maximum Speed:
- Up to 60 strokes per minute (depending on machine configuration).
Product Sizes:
- Length: from 60 to 360 mm.
- Width: from 60 to 260 mm.
- Thickness: from 25 to 170 mm.
Optional:
- Infeed belt conveyor at 90° with the outlet
- Customized size group
- Print registration device for printed wrapping material
