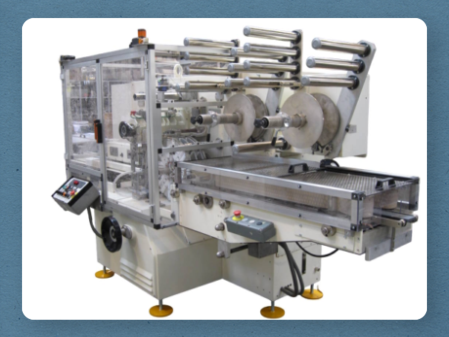

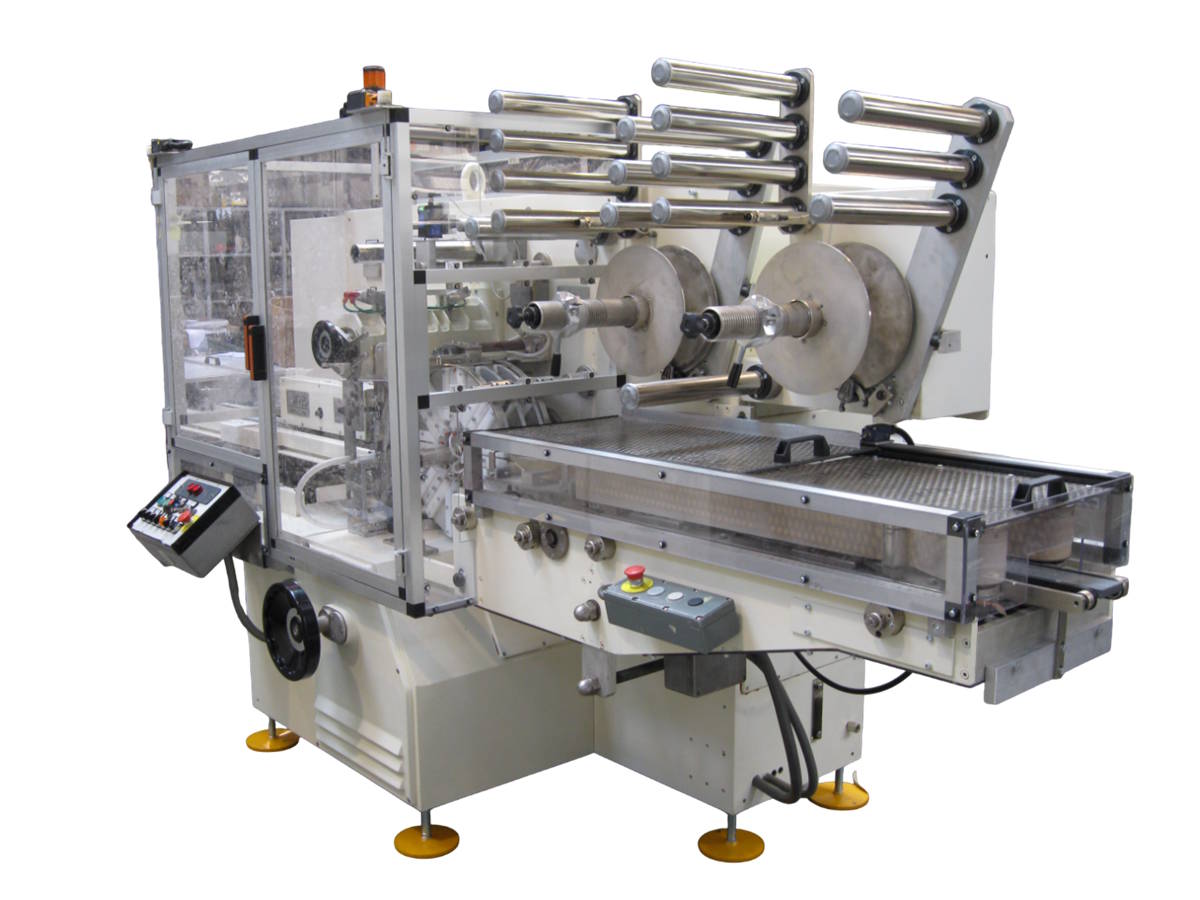

IMA BFB 3705 OVERWRAPPING MACHINE / BUNDLER

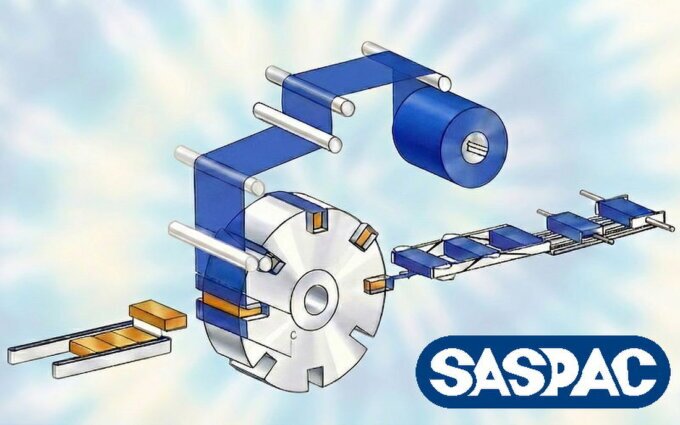

Reconditioned IMA BFB 3705, overwrapper for overwrapping parallelepiped cosmetic and personal care products. The BFB 3705 is a high-speed machine suitable for single and/or multipack configurations on one layer. It works with cellophane, PVC, PP, and other reel-fed, heat-sealable films. The BFB 3705 overwrapper delivers outstanding performance in overwrapping both individual and multiple parallelepiped packs. All mechanical movements are enclosed within an oil-tight frame, while the servo-driven main motor ensures smooth, continuous operation without sudden stop-and-go motions. Format changeovers are quick and straightforward thanks to the use of pre-assembled, pre-set units, helping to minimize downtime.
Technical specifications:
- Infeed belt conveyor in-line with the outlet
- elevator plate to lift up the required number of products
- product pusher suitable for high speed

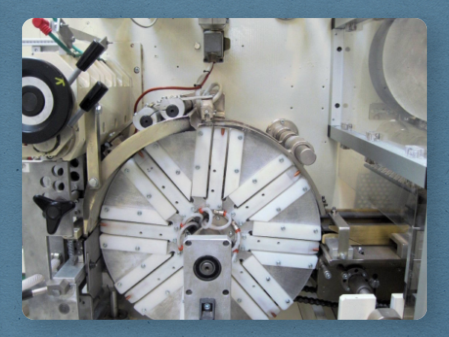

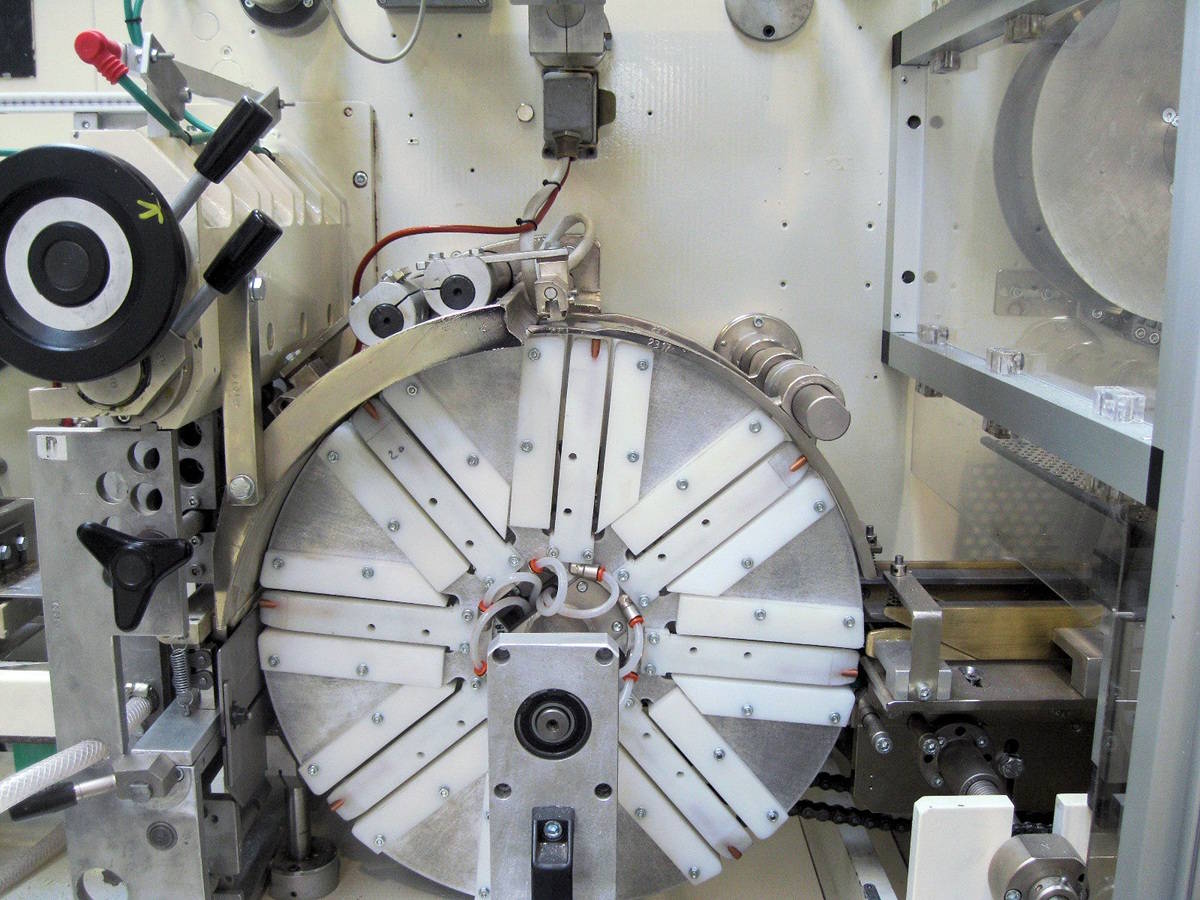

- pocket star-wheel to wrap the film around the products (8 pockets)
- double sealing station for the transversal seal
- folding box for tight wrap

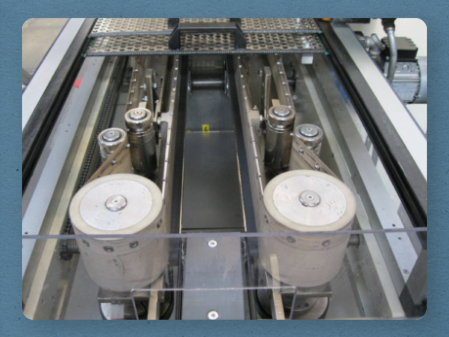

- lateral belt exit in PTFE for film heatsealing at high speed, with independent driving motor and adjustable speed
- Special toothed chain to take the bundles out of the wrapping starwheel.
- Operator guards with safety interlocks
- one set of change parts included
- Brand New Electrical Panel
Maximum Speed:
- Up to 280 strokes per minute (depending on machine configuration).
Product Sizes:
- Length: from 60 to 250 mm.
- Width: from 25 to 140 mm.
- Thickness: from 15 to 50 mm.
Optional:
- Infeed belt conveyor at 90° with the outlet
- Customized size group
- Print registration device for printed wrapping material
