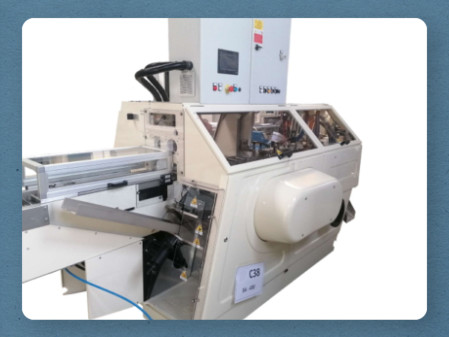

MARCHESINI BA 200 - BA 300 - BA 400 CARTONING MACHINES
The reconditioned MARCHESINI BA 200, BA 300 and BA 400 continuous-motion cartoning series incorporate the latest production technologies and the results of ongoing development in the automatic packaging field. These cartoning machines combine a compact overall footprint with enhanced structural strength, improved dependability, and a modern design. The separation of mechanical components from drive systems, together with the isolation of the product handling area, ensures a hygienic layout and safe conditions during batch changeovers. The balcony-style configuration simplifies cleaning operations.
The cartoners feature an enclosed frame with safety protections on every access point, guaranteeing operator protection and full compliance with current safety standards. The carton closure of the MARCHESINI BA 200, BA 300 and BA 400 cartoning machine is set for tuck-in (reverse tuck) flaps, both double-sided offset or equilateral, but on request we can supply an hot melt system.
CARTON SIZES | BA-200 | BA-300 | BA-400 |
LENGTH | from 78 mm to 200 mm | from 78 mm to 200 mm | from 78 mm to 200 mm |
WIDTH | from 25 mm to 140 mm | from 25 mm to 100 mm | from 25 mm to 70 mm |
THICKNESS | from 15 mm to 70 mm | from 15 mm to 70 mm | from 15 mm to 70 mm |
Technical specifications:
- Continuous motion cartoning machines
- Presence detection of product inside buckets.
- Inclined carton magazine, complete with level detection.
- Rotating carton pick-off and erection group.
- Carton pick-off control system.

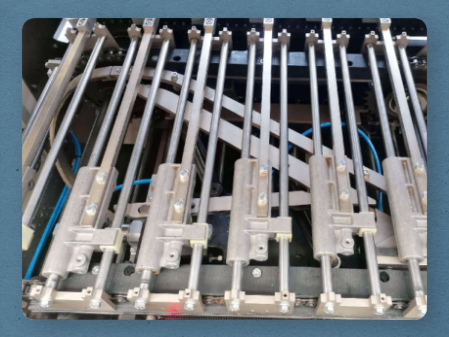

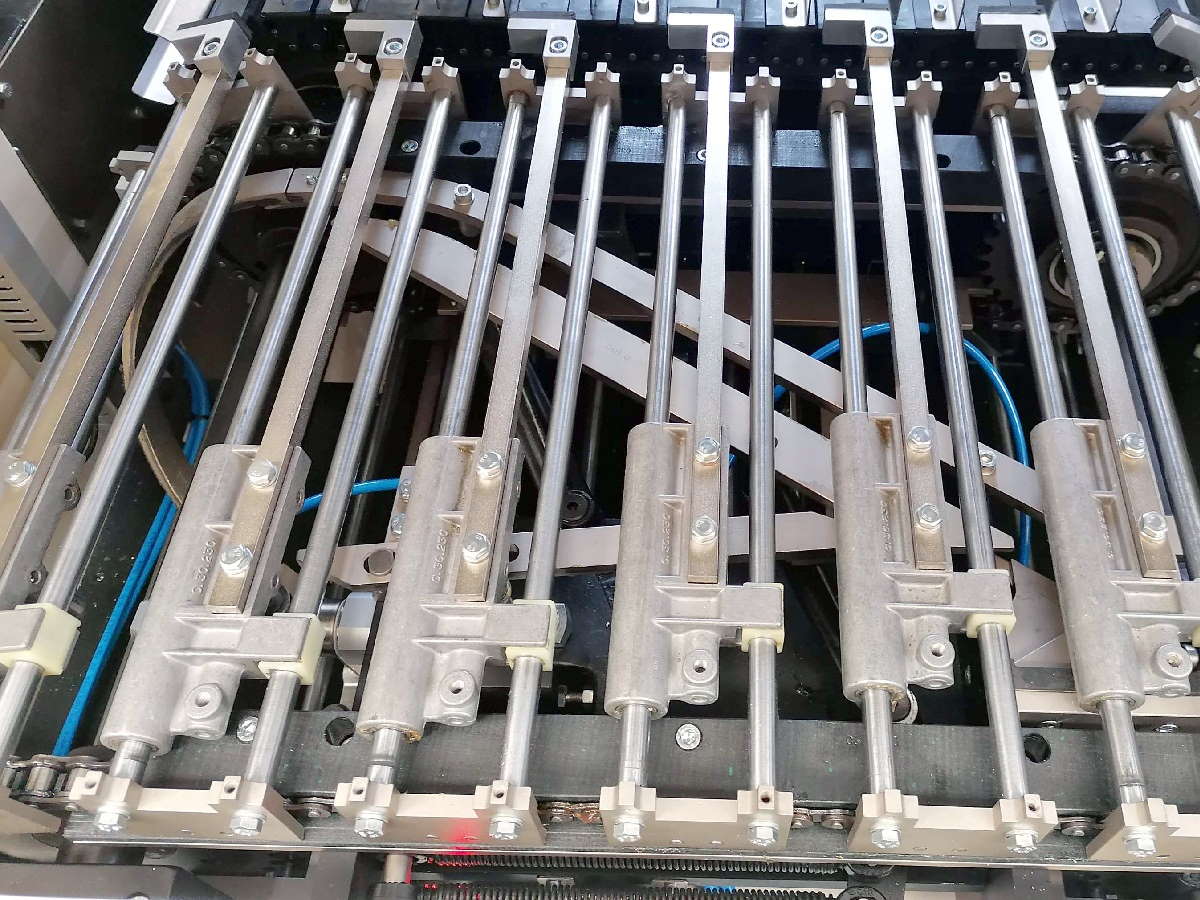

- Set of continuous motion pushers for product introduction into carton.
- Pusher safety device with machine stop for overload during product introduction phase.
- Motorized carton outfeed belts.
- Vacuum pump.
- Electronically interlocked safety covers.
- Brand New Electrical Panel
Maximum Speed:
- BA200 up to 200 strokes per minute.
- BA300 up to 300 strokes per minute.
- BA400 up to 400 strokes per minute.
Optional:
- Automatic Feeder

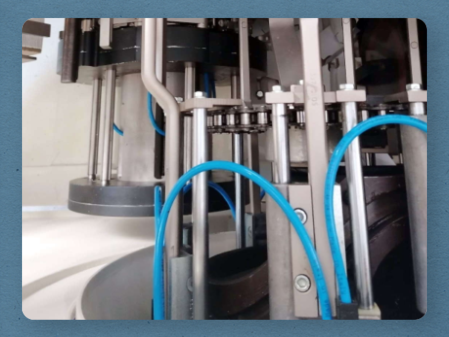

- Customized size group
- Hot melt system

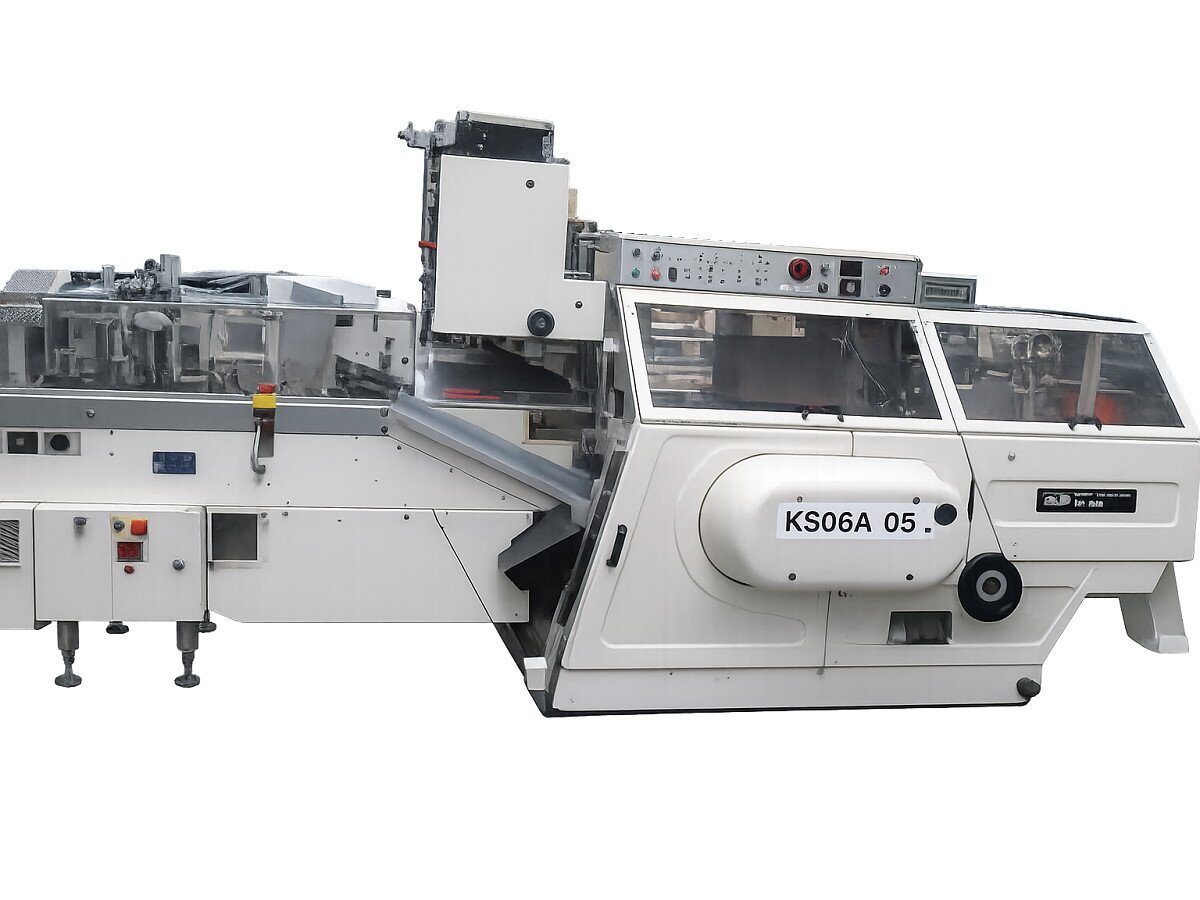

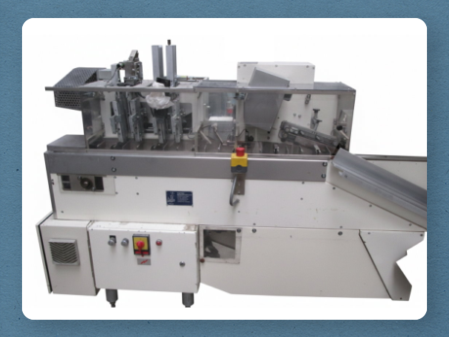

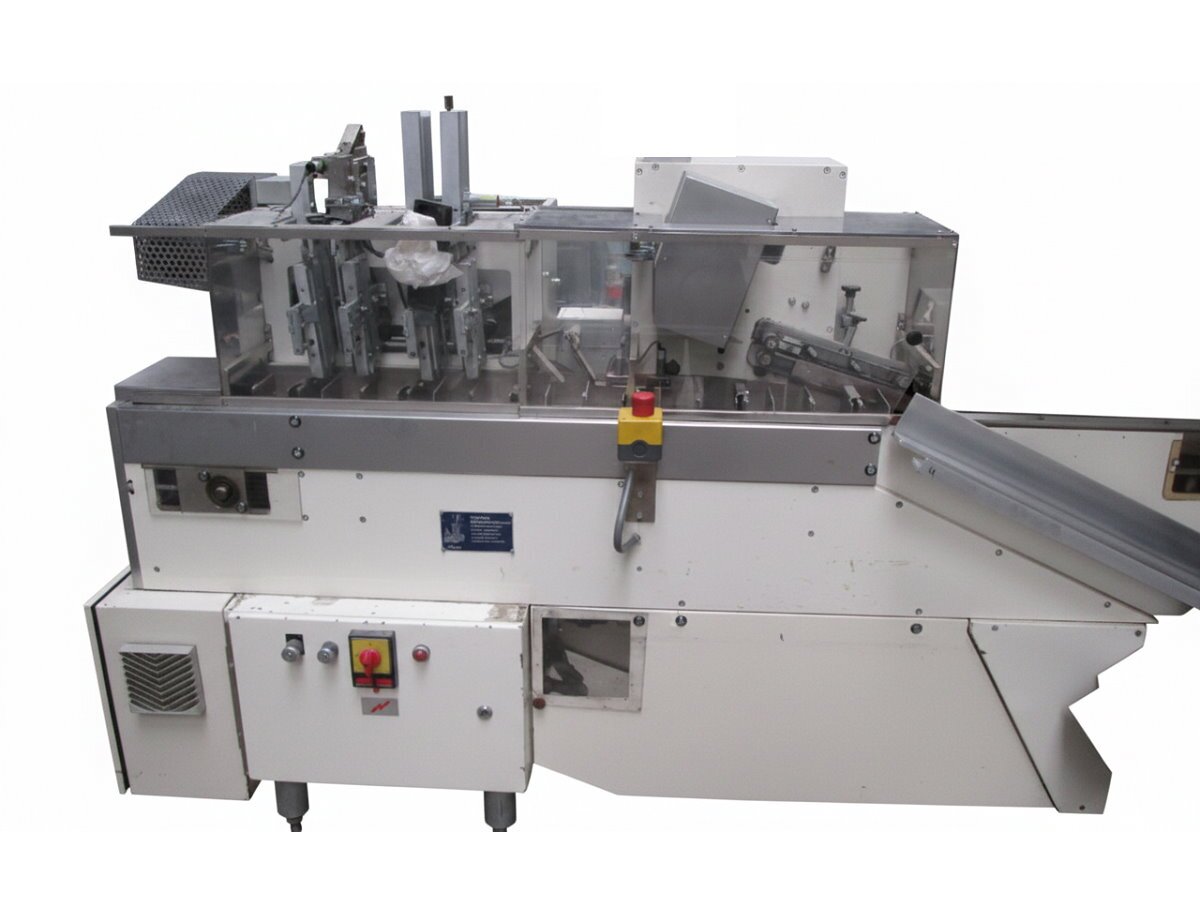

MARCHESINI BA-200
MARCHESINI BA-200

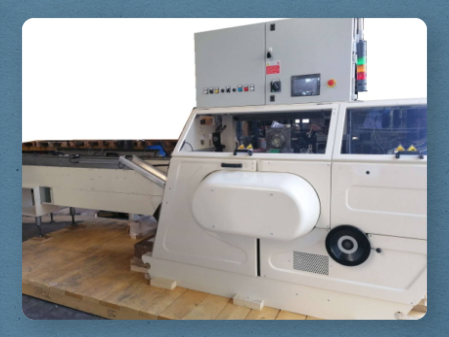

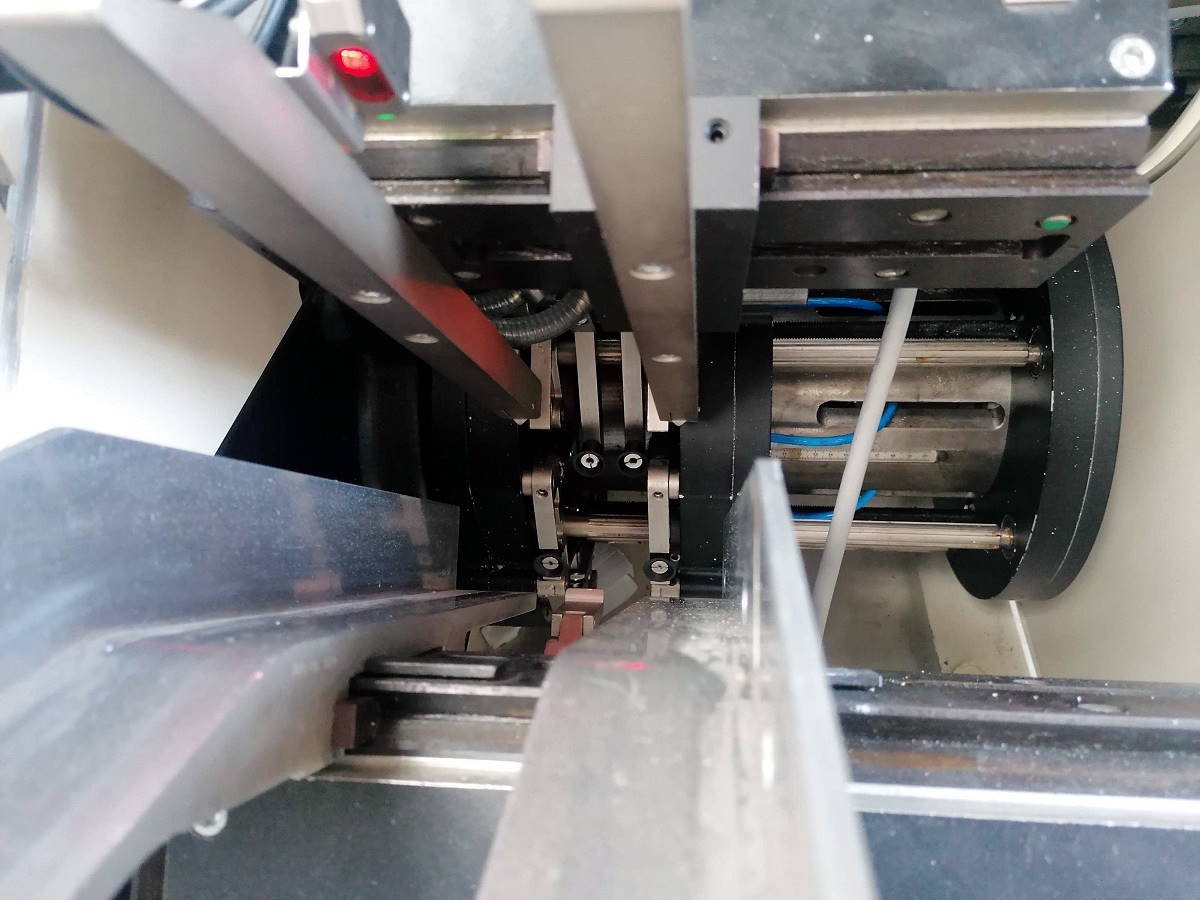

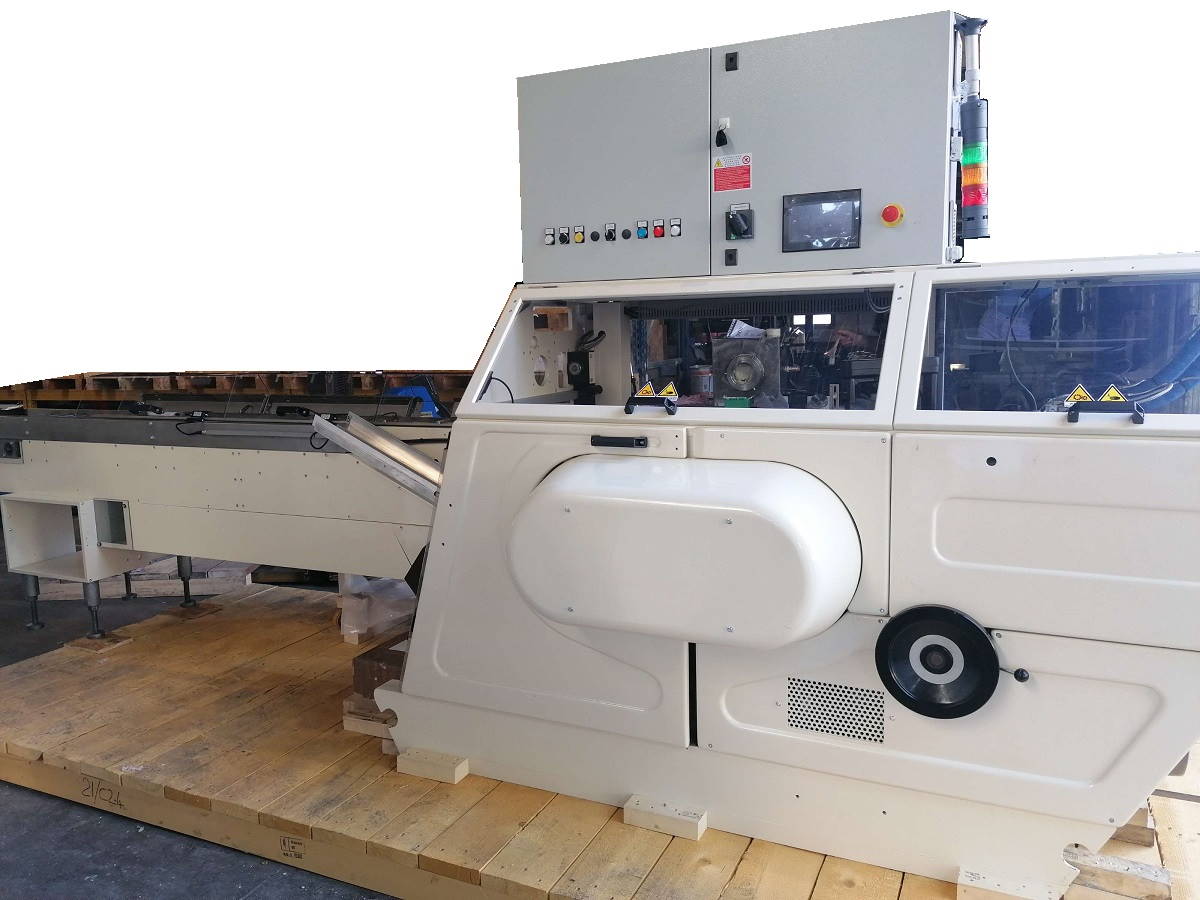

MARCHESINI BA-300
