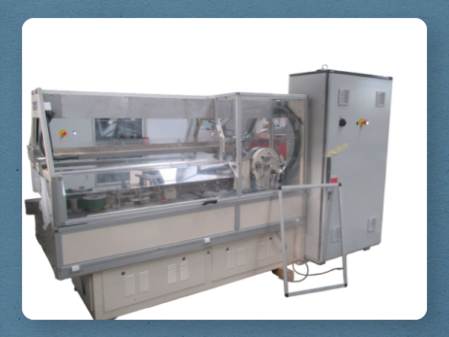

CAM HMM1 CARTONING MACHINE
The Refurbished CAM HMM 1 is a high-speed horizontal cartoning machine operating in continuous motion, developed for the pharmaceutical, cosmetic, food sectors and other products. The CAM HMM 1 cartoner is equipped with a four-head rotary carton magazine and an automatic product infeed system. The machine is particularly suitable for packaging items such as tubes, bottles, and blister packs, while also accommodating a wide variety of other products. The carton closure of the CAM HMM cartoning machine is set for tuck-in (reverse tuck) flaps, both double-sided offset or equilateral, but on request we can supply an hot melt system.
Technical specifications:
- Continuous motion cartoning machine
- “MECHANICAL MEMORY” kit for user-friendly and quick change over
- Conveyor with stainless steel buckets.
- Presence detection of product inside buckets.
- High-capacity carton Magazine with motorized belt Conveyor, complete with level detection and pre-alarm signal on display.

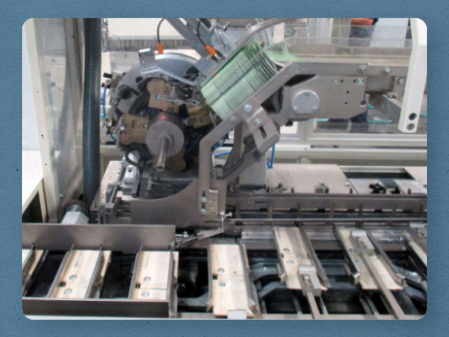

- Four station continuous motion for carton pick-off and erection.
- Carton pick-off control system.
- Set of continuous motion pushers for product introduction into carton
- Safety device on pushers with machine stop in case of overload
- Motorized carton outfeed belts.
- Vacuum pump.
- Overload detection device
- Brand New Electrical Panel
Maximum Speed:
- Up to 300 strokes per minute.
Carton Sizes:
- Length: from 55 to 200 mm.
- Width: from 20 to 70 mm.
- Thickness: from 12 to 70 mm.
Optional:
- Automatic Feeder
- Customized size group
- Hot melt system
