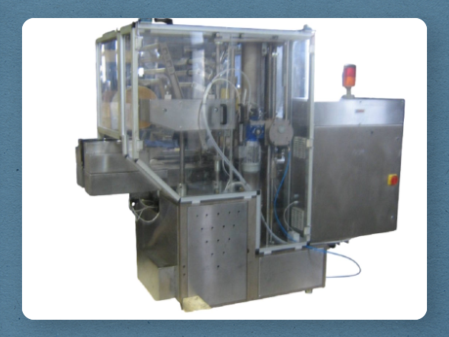

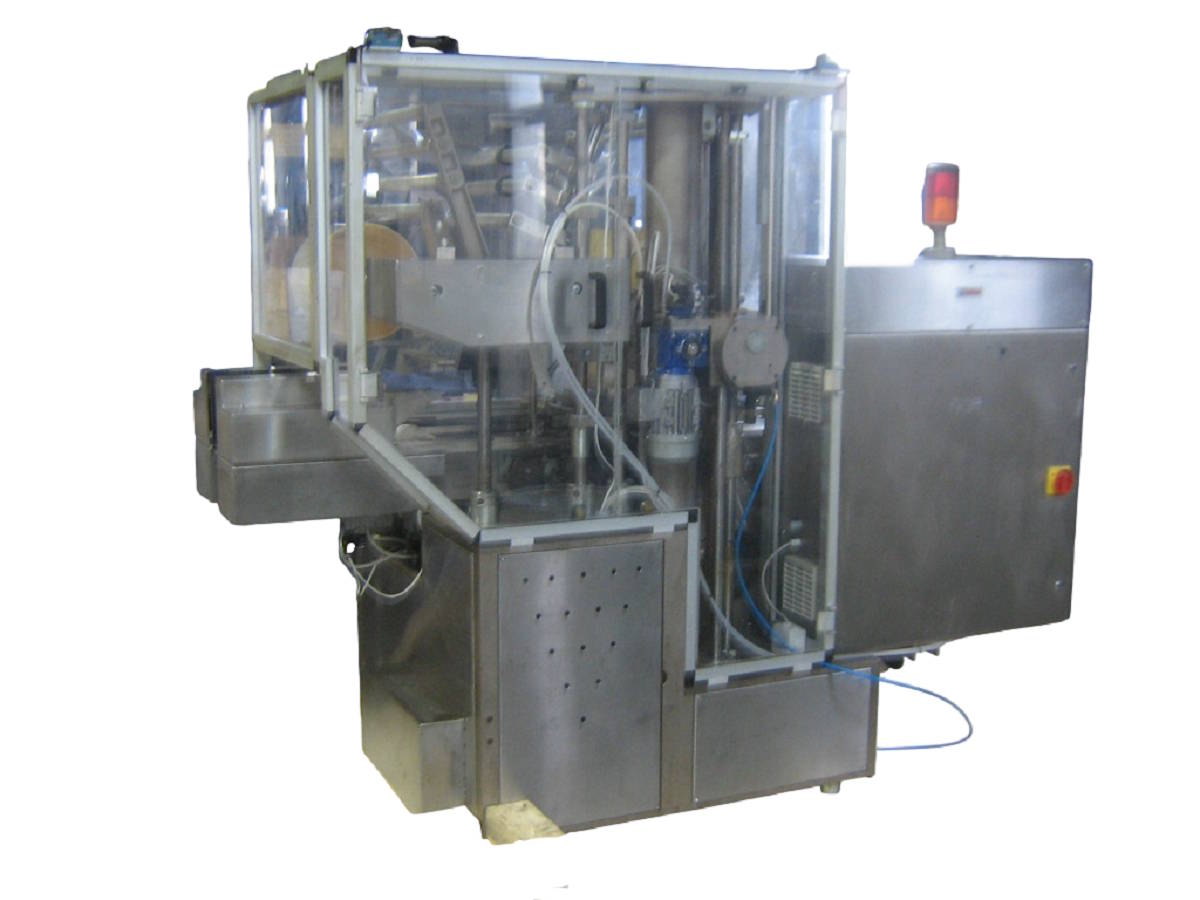

CAM G60 OVERWRAPPING MACHINE / BUNDLER

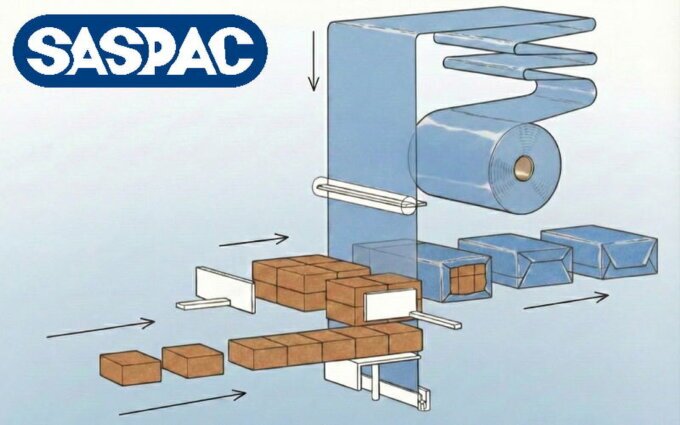

The refurbished CAM G60 automatic bundling and wrapping machine was developed to collate and fully overwrap parallelepiped-shaped products at high speeds using heat-sealable plastic film.
The system is engineered for quick and straightforward format changeovers, offering a high degree of flexibility across different applications.
All adjustment points are conveniently located on the operator’s side, and structural components that could restrict access to the product flow have been removed to ensure maximum accessibility.
Technical specifications:
- In-line infeed belt conveyor with the outlet
- Elevator plate to lift up the product.
- Stacking mechanism for one, two or more layers.
- Bundle pusher
- Sealing station for the transversal seal
- Side Teflon belt conveyors for sealing with independent motion
- Operator guards with safety interlocks
- One set of change parts included
- Brand New Electrical Panel
Maximum Speed:
- Up to 60 strokes per minute (depending on machine configuration).
Product Sizes:
- Length: from 50 to 280 mm.
- Width: from 50 to 250 mm.
- Thickness: from 30 to 150 mm.
Optional:
- Customized size group
- Print registration device for printed wrapping material
