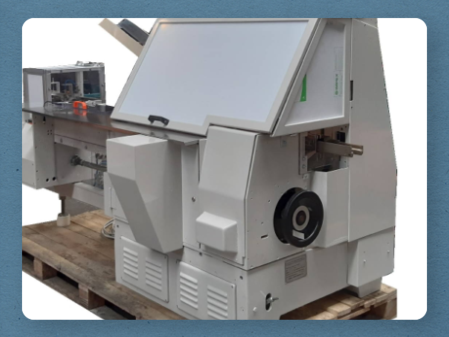

MARCHESINI BA-100 CARTONING MACHINE
The refurbished MARCHESINI BA-100 cartoner has been purpose-built to satisfy, in a complete and user-friendly way, the key requirements of cartoning processes in the pharmaceutical, chemical, food, and related industries. It handles pre-glued cartons with reverse or straight tuck (aeroplane) closures, and can also operate with hot-melt sealing or a combination of tuck and hot-melt systems.

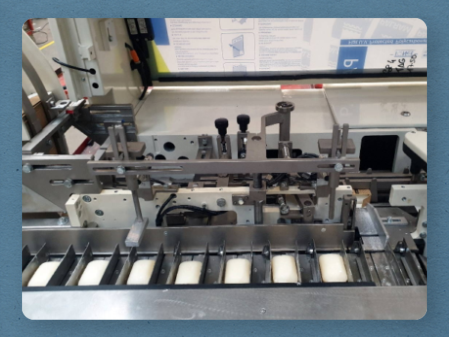

The MARCHESINI BA-100 is a horizontal, intermittent-motion cartoning machine equipped with a bucket conveyor. The system allows either manual product loading or integration with various automatic feeding units, with or without linkage to other automated equipment. The MARCHESINI BA-100 also features a full interlock system that prevents start-up or stops operation in the event of jams or faults. When an interlock is triggered, the condition is clearly indicated by a red warning light on the control panel.
Technical specifications:
- Intermittent motion cartoning machine
- Presence detection of product inside buckets.
- Inclined carton magazine, complete with level detection.
- Carton pick-off and erection group.
- Carton pick-off control system.
- Alternate motion pusher for product introduction into carton.
- Pusher safety device with machine stop for overload during product introduction phase.
- Vacuum pump.
- Electronically interlocked safety covers.
- Brand New Electrical Panel
Maximum Speed:
- Up to 120 strokes per minute.
Carton Sizes:
- Length: from 50 to 170 mm.
- Width: from 20 to 100 mm.
- Thickness: from 12 to 55 mm.
Optional:
- Automatic Feeder
- Customized size group
- Hot melt system
