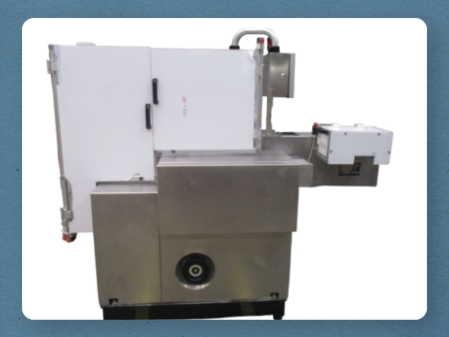

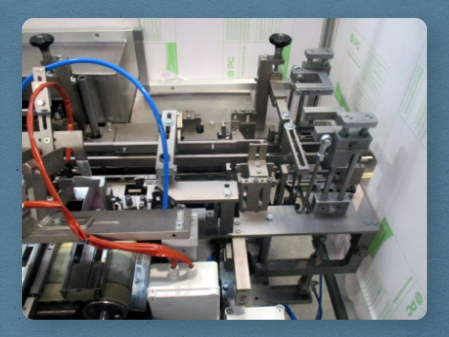

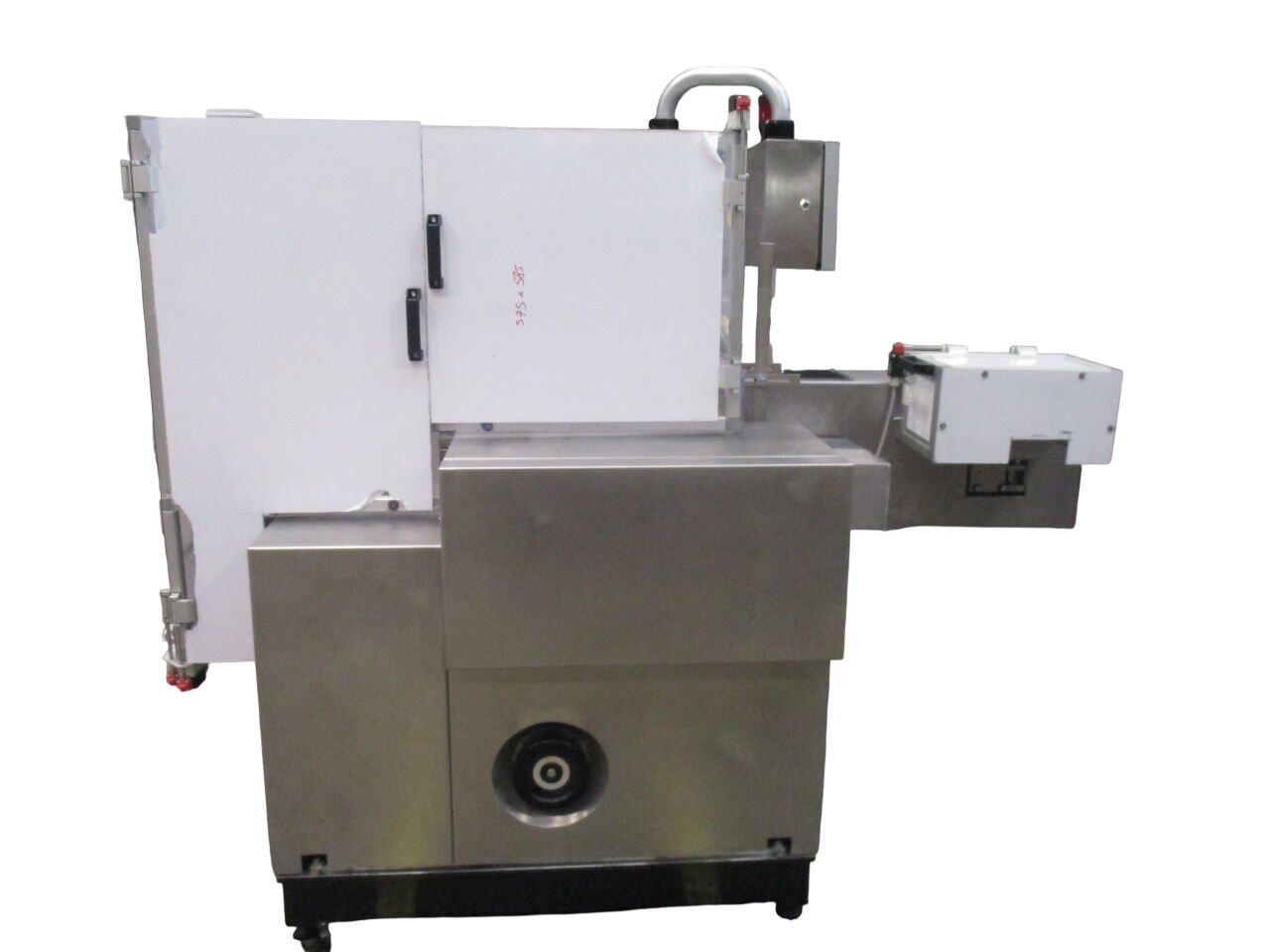

CAM PRX CARTONING MACHINE
The reconditioned CAM PRX is a horizontal cartoning machine with intermittent motion, developed to package pharmaceutical items such as blisters, tubes, and other products into cartons. It stands out for its space-saving design and includes a positive carton opening mechanism along with a flexible, adjustable product infeed system.
The CAM PRX cartoning machine assemble adjustable infeed buckets suitable for blisters, tubes, bottles and other products. The carton closure of the CAM PRX cartoner is set for tuck-in (reverse tuck) flaps, both double-sided offset or equilateral, but on request we can supply an hot melt system.
Technical specifications:
- Intermittent motion cartoning machine
- Conveyor complete with adjustable separators.
- Presence detection of product inside buckets.
- Carton magazine, complete with level detection.
- Carton pick-off and erection.
- Carton pick-off control system.
- Pusher for product introduction into cartons
- Control of correct product introduction.
- Three-phase drive motor controlled by frequency inverter.
- Vacuum pump.
- Brand New Electrical Panel
Maximum Speed:
- Up to 150 strokes per minute.
Carton Sizes:
- Length: from 50 to 200 mm.
- Width: from 15 to 90 mm.
- Thickness: from 12 to 50 mm.
Optional:
- Automatic Feeder
- Customized size group
- Hot melt system
