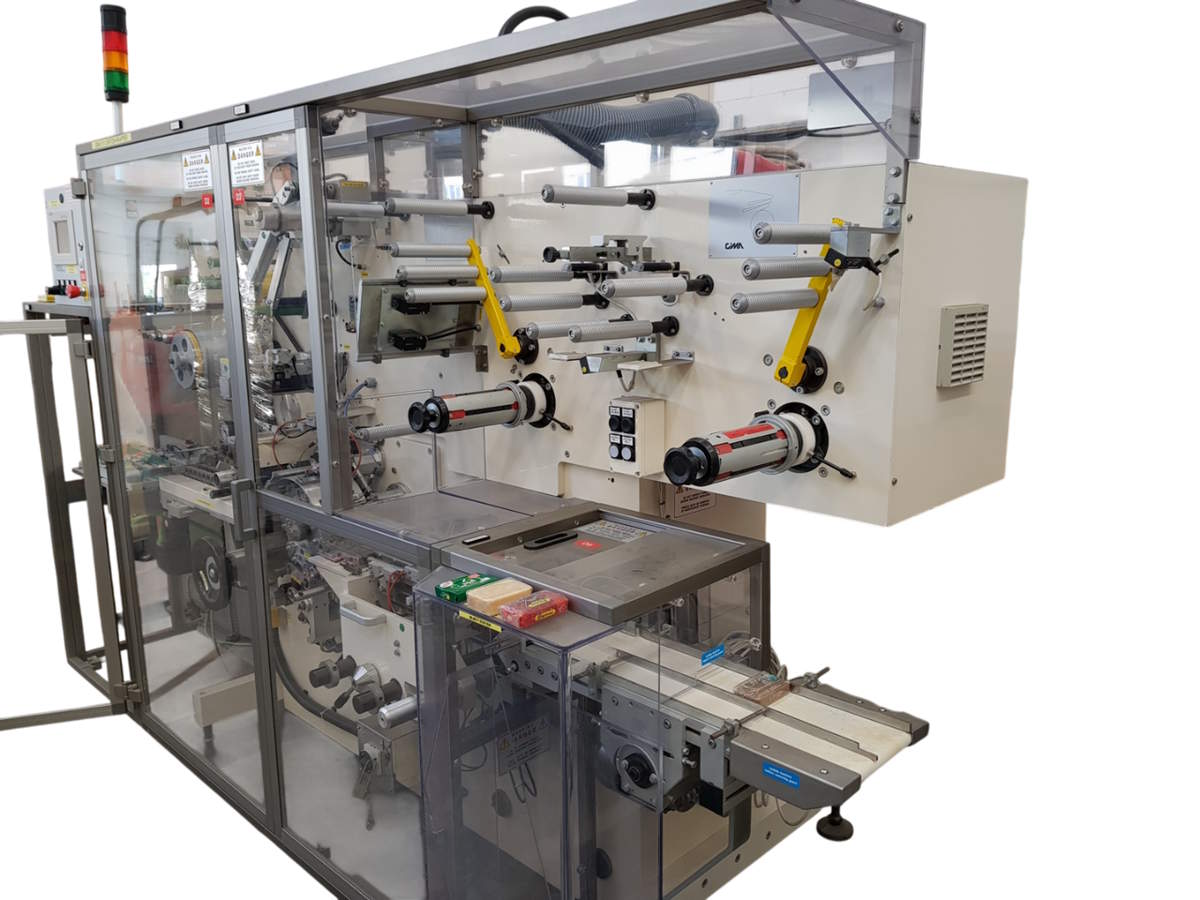

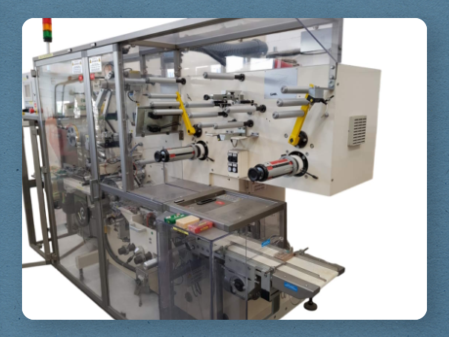

IMA GIMA FTO511 OVERWRAPPING MACHINE
The refurbished IMA FTO511 overwrapping machine is a high-performance system designed to reach speeds of up to 500 strokes per minute. IMA FTO511 overwrapping machine is compatible with different types of heat-sealable films, including PP, PVC, and cellophane.

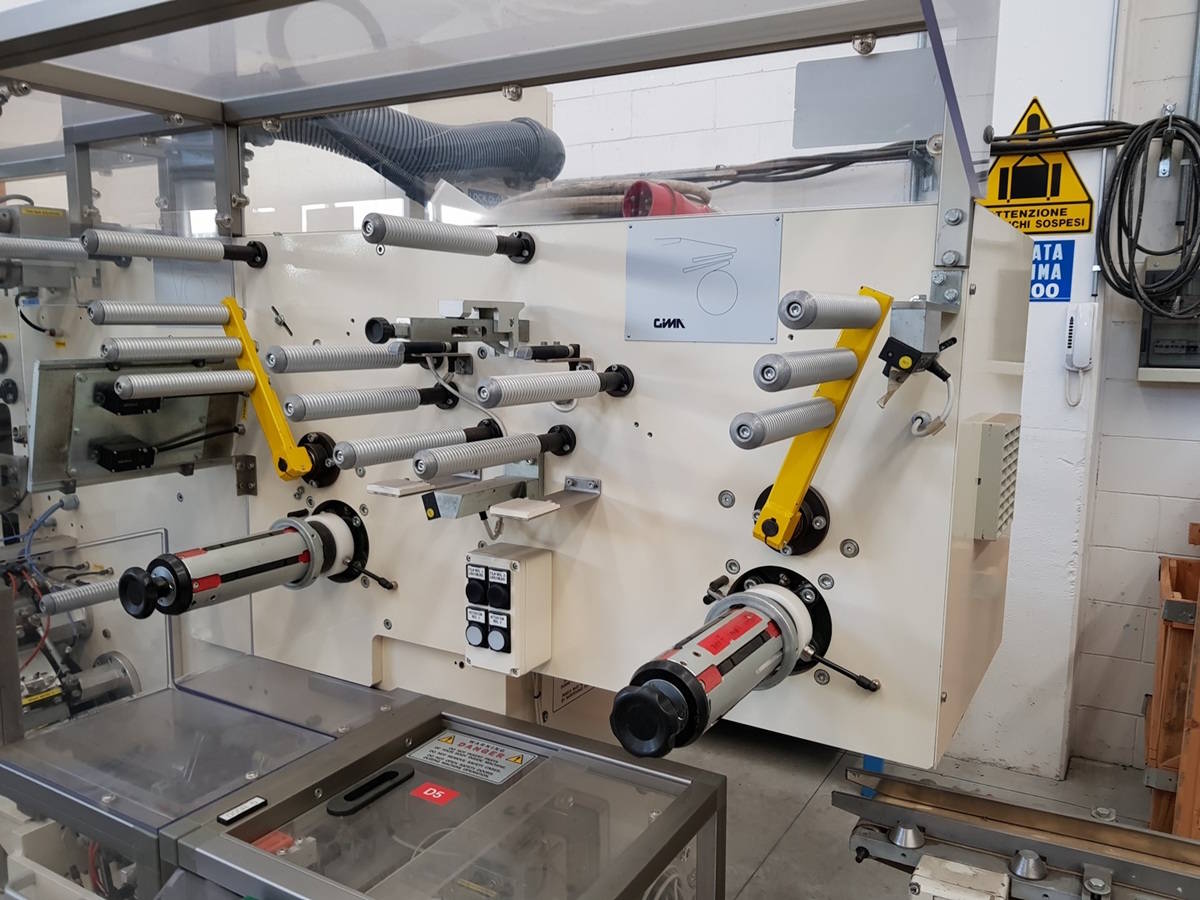

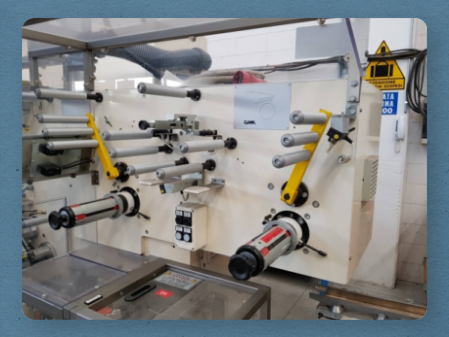

To improve both packaging quality and production efficiency, the IMA FTO511 wrapping machine incorporates features such as an integrated tear-tape applicator, two film reel holders, and an automatic film splicer. Its design also includes energy-saving solutions aimed at reducing overall power consumption and supporting more sustainable operation.
Technical specifications:
- Infeed belt conveyor in-line with the outlet
- elevator plate to lift up the required number of product
- product pusher suitable for high speed
- pocket star-wheel
- double sealing station for the transversal seal
- folding box for tight wrap
- lateral plates for film heatsealing at high speed
- Operator guards with safety interlocks
- one set of change parts included
- Brand New Electrical Panel
Maximum Speed:
- Up to 500 strokes per minute (depending on machine configuration).
Product Sizes:
- Length: from 30 to 140 mm.
- Width: from 30 to 75 mm.
- Thickness: from 12 to 30 mm.
Optional:
- Customized size group
- Print registration device for printed wrapping material
